COP/APA Fluorine Rubber Double-acting Cylinder Piston Seal Special O-ring
| उत्पत्ति के प्लेस | चियान |
|---|---|
| ब्रांड नाम | DZK |
| प्रमाणन | ROHS |
| मॉडल संख्या | ए पी ए |
| न्यूनतम आदेश मात्रा | 100pcs |
| मूल्य | negotiate |
| पैकेजिंग विवरण | 100pcs/बैग |
| प्रसव के समय | 7-10 दिन |
| भुगतान शर्तें | एल/सी, टी/टी |
| आपूर्ति की क्षमता | 1000000pcs/महीना |
निःशुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।
व्हाट्सएप:0086 18588475571
वीचैट: 0086 18588475571
स्काइप: sales10@aixton.com
यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।
xउत्पाद विवरण
| प्रोडक्ट का नाम | सीओपी/एपीए | सामग्री | एफकेएम (फ्लोरोएलास्टोमेर) |
|---|---|---|---|
| दाब मूल्यांकन | 0-1.5 एमपीए | तापमान की रेंज | -20 डिग्री सेल्सियस से +200 डिग्री सेल्सियस |
| रंग | भूरा (मानक) | कार्य माध्यम | खनिज तेल, सिंथेटिक तेल, पानी |
| भौतिक गुण | तेल-प्रतिरोधी, पहनने-प्रतिरोधी और बुढ़ापा रोधी | संरचना | दो तरफा नालीदार, दोहरा अभिनय |
उत्पाद विवरण
COP/APA Fluorine Rubber Double-acting Cylinder Piston Seal | High-Performance FKM O-Ring for Extreme Conditions
Product Overview
The COP/APA Fluorine Rubber Double-acting Cylinder Piston Seal is a premium sealing solution engineered for the most demanding industrial applications. Manufactured from high-grade Fluoroelastomer (FKM), this specialized O-ring delivers exceptional performance in extreme temperatures, aggressive chemicals, and high-pressure environments, ensuring reliable sealing in both stroke directions of double-acting cylinders.
Key Features & Benefits
1.Material Performance: Strong material properties, with excellent resistance to high and low temperatures (-20°C to 200°C), strong acids, strong alkalis, and various oils, as well as outstanding chemical stability, making it less prone to swelling and cracking.
2. Good Sealing Effect: Well-suited for the reciprocating motion of double-acting cylinders, it conforms closely to the sealing surface, minimizes leakage under high pressure, has low compression deformation, and ensures long-term reliable sealing.
3. Outstanding Durability: High wear resistance and tear resistance, with good ozone aging resistance. Its lifespan is 3-5 times that of ordinary rubber rings, reducing replacement frequency.
4. High Adaptability and Cost-Effectiveness: Precisely matches the operating conditions of APA double-acting cylinders, reduces equipment maintenance costs, and can be used in multiple high-end scenarios such as chemical industry, machine tools, and automobiles.
Technical Specifications
| Parameter | Standard Specification |
|---|---|
| Material | FKM (Fluoroelastomer) |
| Temperature Range | -20°C to +200°C |
| Pressure Rating | 0-1.5 MPa |
| Color | Brown (Standard) |
Applications
-
Hydraulic Systems - High-pressure cylinders in manufacturing equipment
-
Chemical Processing - Pumps and valves handling corrosive media
-
Automotive Industry - Engine and transmission systems
-
Oil & Gas Equipment - Drilling and refining machinery
-
Aerospace Applications - High-temperature hydraulic systems
Material Advantages of FKM
Superior Chemical Resistance
-
Excellent resistance to oils, fuels, aromatics, and most chemicals
-
Minimal swelling in hydrocarbon-based fluids
-
Maintains performance in aggressive industrial environments
Thermal Stability
-
Continuous operation at elevated temperatures
-
Rapid thermal cycling capability
-
Retains elasticity across full temperature range
Mechanical Properties
-
Excellent compression set resistance
-
Good tensile and tear strength
-
Low gas permeability

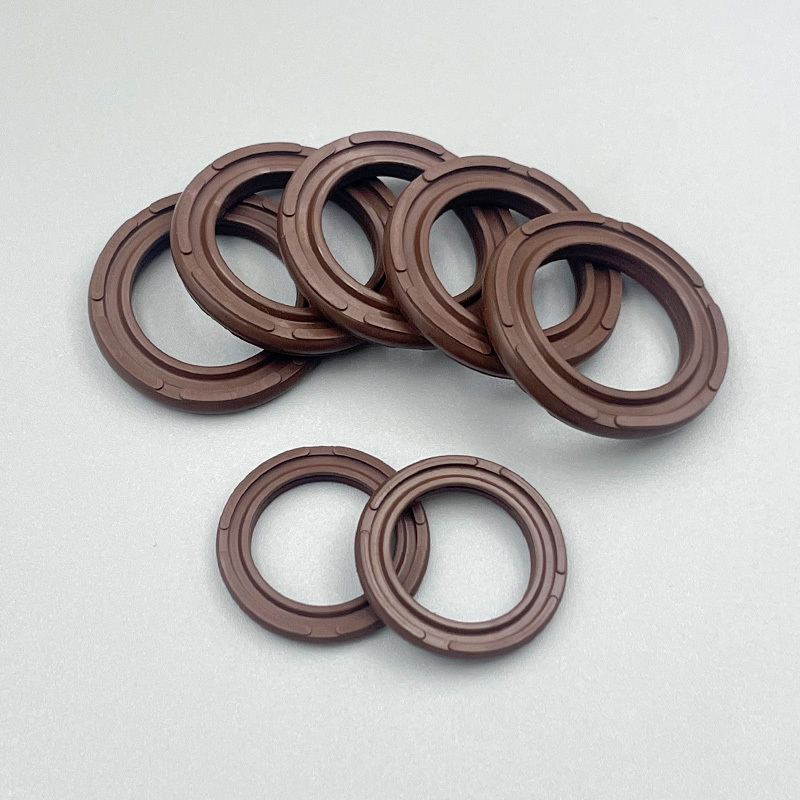

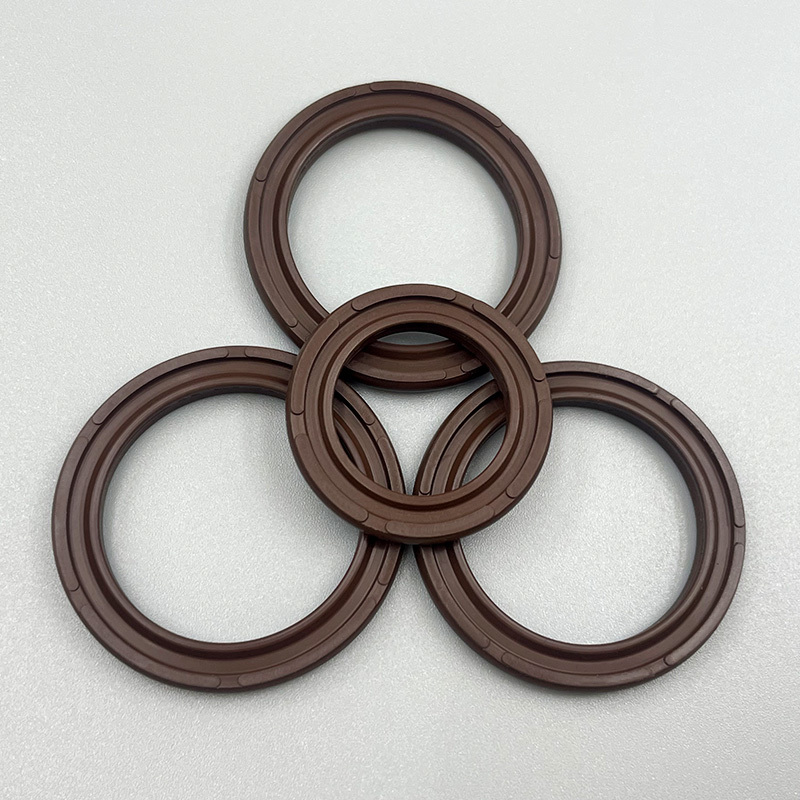

Product real shot
